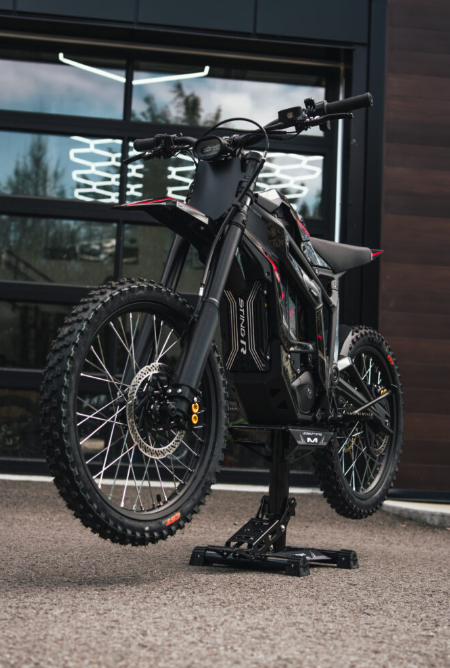

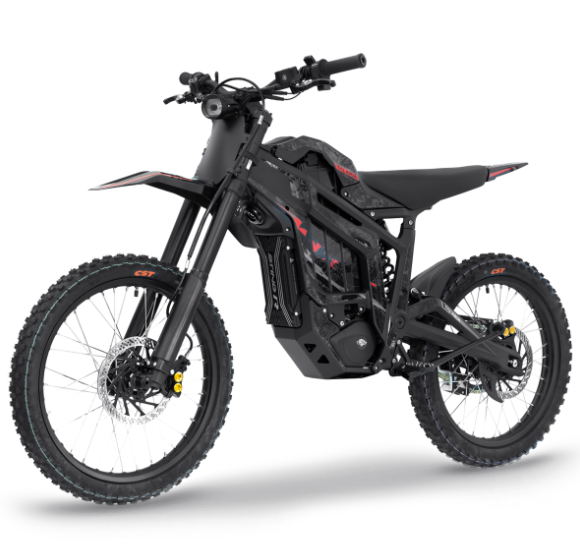

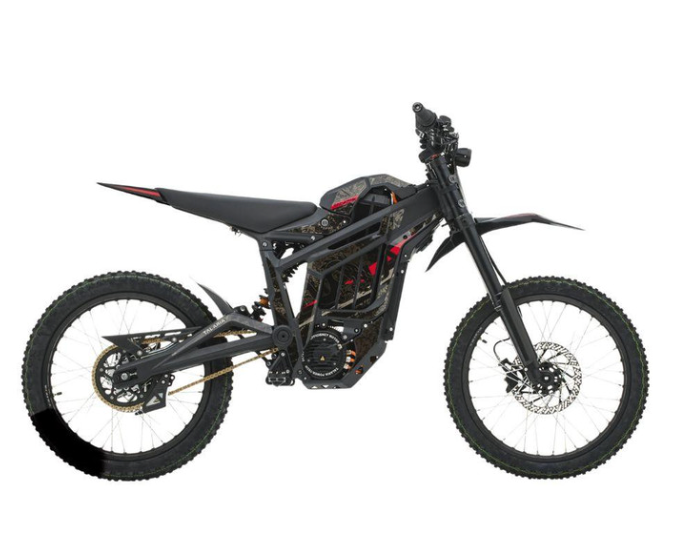

TALARIA STING MX5 PRO
The stunning new Talaria Sting MX5 Pro, Talaria’s newest model, is built to provide the best possible electric off-road performance. With its new 72V/40Ah battery, Talaria’s most potent model to date, the MX5 Pro, stands out from the competition. A 45% boost in power over current 60V Talaria models allows you to feel more torque, accelerate more quickly, and reach higher top speeds.
TALARIA STING MX5
The Talaria Sting MX5 also boasts powerful moto-spec brakes, three riding modes (including a high-performance “hyper” mode), four levels of regenerative braking, a color TFT display, and much more. The Talaria line’s characteristics include a powerful IPM motor and a clever gearbox that give immediate torque and silent operation.
With amazing high-spec features and a reasonable MSRP, the Talaria Sting MX5 Pro is the answer for riders looking for the pinnacle of electric lightweight off-road performance.
TALARIA STING MX5 HIGHLIGHTS
Talaria Sting MX5 Pro – UNRIVALED Power & Performance
KEY FEATURES
72V 40Ah battery with Samsung 50S cells (2,880 WH)
Improved braking power (220x3mm disc brakes, larger calipers & DOT redesigned master cylinders)
Adjustable air & double spring suspension tuned for optimal off-road performance (improved over MX4)
3 riding modes including hyper performance mode (unique to the MX5)
CNC machined black footpegs
Colour TFT Display
Straight-pull CNC machined wheel hubs with reinforced spokes
Regenerative braking (including regenerative brake lever)
Headlight switch
Internal reinforced gearbox for quiet, reliable power (no more worn out or snapped belts)
VEHICLE
Chassis Material: 6061 T4 & T6 aluminium alloy
Process Method: Forged under 6,000 tonnes of pressure
Surface Method: Anodizing
Headlight: LED
Front Fork: Adjustable air + dual spring (220mm travel)
Rear Shock: Adjustable 85mm travel with linkage
Wheel Size: 1.4×19 in. front / 1.6×19 in. rear
Tires: FR 70/100-19 / RR 80/100-19 off-road tires
Max Range: 100 km @ 25 km/h (62 miles @ 15 mph)
Net Weight: 76 kg (159 lbs) with battery
Vehicle Dimensions: 1,880 x 770 x 1,088mm (74 x 30.3 x 42.8 in)
Seat Height: 840mm (33.1 in)
Wheelbase: 1,250mm (49.2 in)
Handlebar Length: 760mm (29.9 in)
Ground Clearance: 300mm (11.8 in)
Max Climbing Angle: 45°
Max Recommanded Load: 100 kg (220 lbs)
Brakes: Hydraulic FR/RR improved 4-pistons
Brake Disc: 220mm x 3mm
POWER
Nominal Voltage: 72V (DC)
Maximum Speed: Factory limited to 32 km/h (20 mph)
Torque: 500N.m (428 48T sprocket)
Rated Power: 5.5 kw (Unrestricted)
Peak Power: 13.4 kw (Unrestricted)
Power Mode: Eco / Sport / Hyper
ELECTRONIC
Battery Pack: 72V 40AH
Battery Cells: Samsung 50S
Display: TFT – Speed, battery level, voltage, odometer
Regenerative Braking: 4-level adjustment + regenerative brake lever
MOTOR
Motor type: DC IPM
Mounting Position: Mid-mounted
Motor Cooling: Air-cooled
TRANSMISSION
Primary Transmission: Gearbox
Drive Transmission: 418-108T Chain
Rear Sprocket: 48T
